1.5-3.5mm CZ Sigma Interchargeable Purlin Roll Forming Machine with 3units Punching Stations
1. Main speficication:
Machine can produce C,Z,Sigma three profiles in one machine, change different profiles need to change some rollers, no need to change cutter. Through change rings on the shafts adjust size. Machine include 5T hydraulic decoiler, 7 rollers flatten system, pre-cutting system and two units punching system
2. The Chart of Process Flow
Uncoiler— Flatten—Servo Feeding& punching—Pre-cutting—Roll Forming—Auto stacker
3.Machine Detailed Parameters
| 1 | Machine structure | Wire-electrode structure |
| 2 | Total power | Motor power-30kw Hydraulic power-22kw |
| 3 | Roller stations | About 24 stations with one station of rectify |
| 4 | Productivity | 0-15m/min |
| 5 | Drive system | By chain |
| 6 | Diameter of shaft | ￠85mm, 40Cr |
| 7 | Voltage | 380V 50Hz 3phases (Customized) |
4.Specification of Components
| No | | Technical Specification & Remark |
| 1 | Main Roll Forming Machine | - Main motor power:30kw
- Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
- Roll station: 24 stations
- Roller material:ASTM52100 chrome plated surface with hardness 58-62 degree
- Shaft diameter: ￠85mm material: 40Cr with quenching and tempering
|
| 2 | Machine structure: | - Main frame by 350H beam welding
- Machine structure: Wire-electrode cutting
- Chain driving system
|
| 3 | Post cutting system | - Machine adopts hydraulic post cutting system.
- Cutting power by hydraulic, 22KW
- Cutting after forming: Cut the sheet after roll forming to required length
- Cutting motion: The main machine will stop when cutting, after the motion the machine will continue automatically.
- Material of blade:Cr12 with heat treatment 58-60°
- Tolerance of length: 3000mm+/- 1.5mm
|

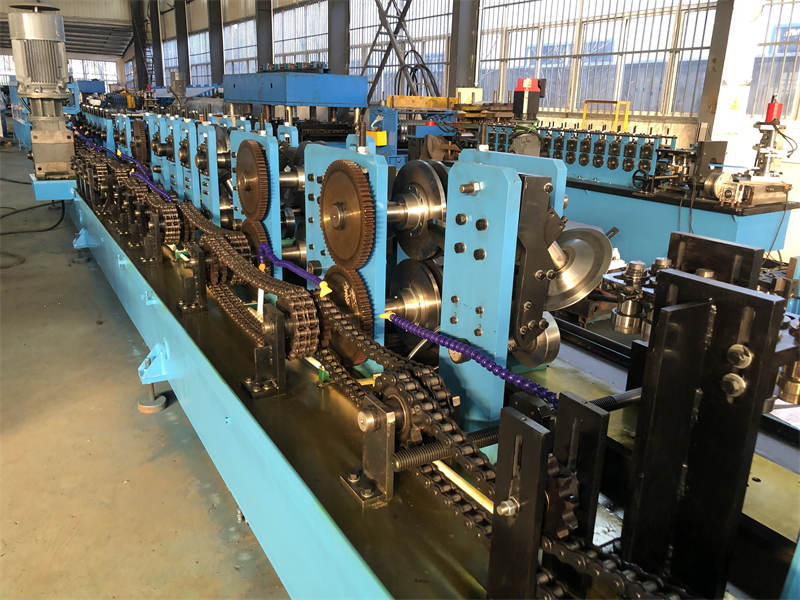

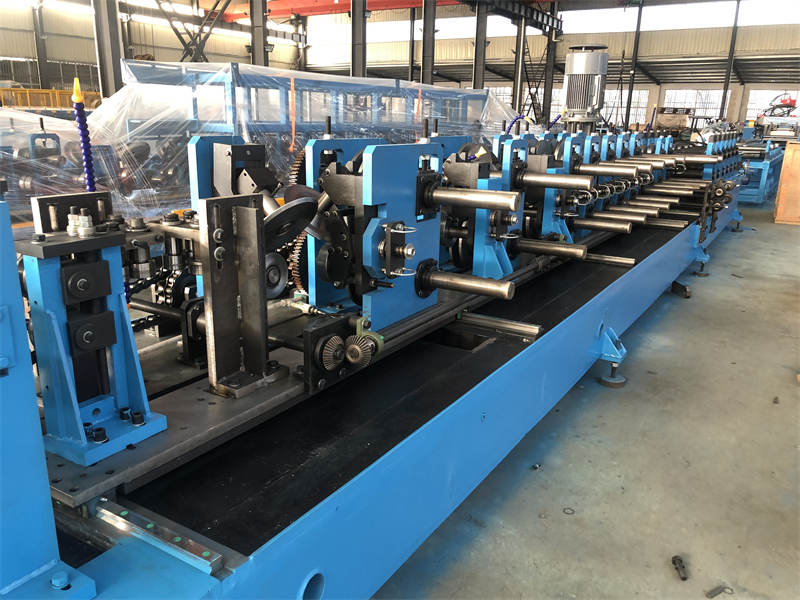

5.Machine pictures for reference
6.Warranty
- Warranty: 1 year warranty from date of shipment
- Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
