Double Layer Sheet Metal Forming Equipment , Metal Roofing Roll Forming Machine Manual Decoiler

Name: Double Layer Sheet Metal Forming Equipment Metal Roofing Roll Forming Machine Manual Decoiler
Brand: Saibo
Price: 1 USD

Quality Double Layer Sheet Metal Forming Equipment , Metal Roofing Roll Forming Machine Manual Decoiler wholesale

Brand Name : Saibo

Model Number : YX6-999/ YX15-999

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T or L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Product Name : Double Layer Roll Forming Machine

Power : 5.5KW+4kw

Size Of purlin : YX6-999/ YX15-999

Steel thickness : 0.3-0.8mm

Decoiler : Manual

Station : Up layer: 11stations; Down layer: 13 stations

Roller material : ASTM1045 chrome plated surface with chrome

Size of line : About 6.0mx2.1mx1.6m

Contact Now

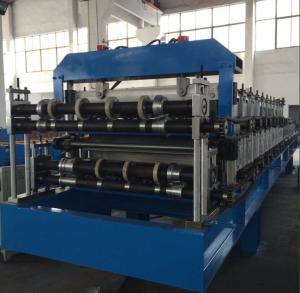

Double Layer Roll Forming Machine

1. Specification of the material

1	Suitable Material	PI/ PPGI
2	Width of the raw material	1070mm/ 1220mm
3	Thickness	0.3-0.8mm

2. Machine Detailed Parameters

1	Roll Forming Machine	YX6-999/ YX15-999
2	Machine structure	Guide pillar structure
3	Total power	Motor power-5.5kw Hydraulic power-4kw
4	Roller stations	Up layer- 11 stations Down Layer-13 stations
5	Productivity	0-15m/min
6	Drive system	By chain
7	Diameter of shaft	￠70mm solid shaft
8	Voltage	380V 50Hz 3phases (Customized)
9	Color Of The Machine	Bule and yellow
10	Deliver time	70 days
11	Terms Of Payment	30%T/T 70% pay before shipment

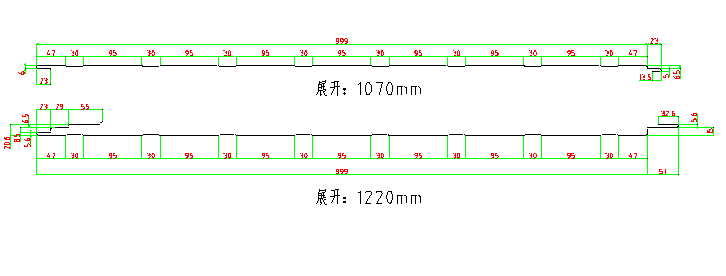

3. Profile drawing

Double Layer Sheet Metal Forming Equipment , Metal Roofing Roll Forming Machine Manual Decoiler

4. The Chart of Process Flow

Manual Decoiler—Roll Forming—Cutting—Out table

Double Layer Sheet Metal Forming Equipment , Metal Roofing Roll Forming Machine Manual Decoiler

5. Specification of Components

(1) 5T Manual Un-coiler

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 500-590mm
Maximal out diameter: 1500mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

(2)Flim System

Machine adopt film system in order to protect the coil

(3) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
Main frame by 350H beam welding
Machine structure: guide pillar

(4) Hydraulic Cutting System

Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

Programmable setting of profile length and quantity
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

PLC: Panasonic or customerization
