Double Layer Roll Forming Machine
1. Specification of the material
| 1 | Suitable Material | PI/ PPGI |
| 2 | Width of the raw material | 1220mm |
| 3 | Thickness | 0.3-0.8mm |
2. Machine Detailed Parameters
| 1 | Roll Forming Machine | YX18-2001000/ YX18-76-990 |
| 2 | Machine structure | Guide pillar structure |
| 3 | Total power | Motor power-7.5kw Hydraulic power-5.5kw |
| 4 | Roller stations | Up layer- 18 stations Down Layer-20stations |
| 5 | Productivity | 0-15m/min |
| 6 | Drive system | By chain, one inch, double line |
| 7 | Diameter of shaft | ￠70mm solid shaft |
| 8 | Voltage | 380V 50Hz 3phases (Customized) |
| 9 | Deliver time | 70 days |
| 10 | Terms Of Payment | 30%T/T 70% pay before shipment |
3. Profile drawing

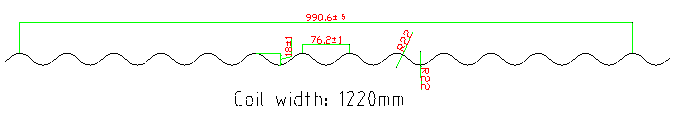

Up Layer:

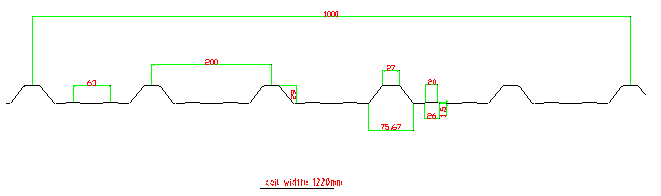

Down Layer:
4. The Chart of Process Flow
Manual Decoiler—Roll Forming—Cutting—Out table
5. Specification of Components
(1) 5T Manual Un-coiler
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 500-590mm
- Maximal out diameter: 1500mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
(2) Pre-cutting
- Pre-cutting install after feeding for customer change coil only
- Cutting type: manual
- Function:for coil replacement
(3) Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
(4) Machine Structure
- Main frame by 350H beam welding
- Machine structure: guide pillar
(5) Hydraulic cutting system
- Cutting after forming: Cut the sheet after roll forming to required length
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,5.5KW
- Working pressure: 12Mpa adjustable
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
(5) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- PLC: Panasonic or customerization
6. Machine loading,packing and shipping
Usually the machies will be transported to the customer's workshop by shipping in containers. Sometimes, it aslo can be deliveried by train containers.
The container that we are use are commonly 20 feet and 40 feet containers.40 feet high containers and top open containers are used as well.
It depends on the machines the customer ordered. We will try our best to find a most economical way for you.
7. After service
1. Customers to send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer`s factory for the installation of the machine.
3. Good aftersales-service, its free of charge during the warranty period.
