Main specification
| No | Specification of the material |
| 1 | Suitable Material | GI/ carbon steel |
| 2 | Width of the raw material | Based on the purlin sizes. |
| 3 | Thickness | 1.0mm-2.0mm |

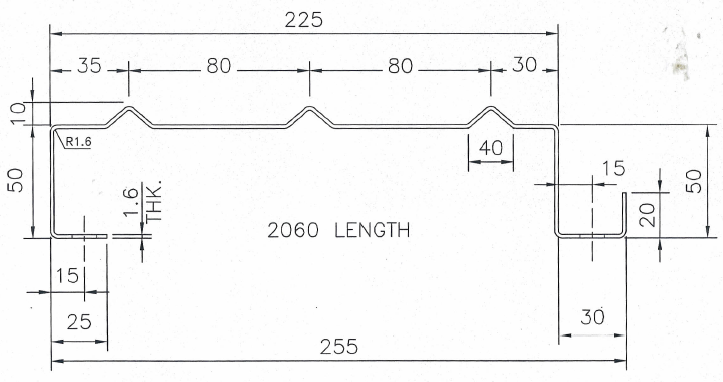

Profile drawing:
The Chart of Process Flow
Manual Un-coiler—Roll Forming—Cutting—Out table
Specification of Components
| No | | Technical Specification & Remark |
| 1 | Manual Un-coiler | - Width of feeding: 500mm
- Capability: 3 Ton
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
- Color: blue
|
| 2 | Main Roll Forming Machine | - Roller material: Gcr15 , 58-62,HRC hardness and chrome plated surface
- Shaft diameter: ￠65mm, material is 45# forge steel
- To avoid accidents, the driven parts will be covered with the protective cover
|
| 3 | Machine structure: | - Main frame by 350H beam welding
- Machine structure: wall board panel
|
| 4 | Hydraulic cutting system | - Cutting after forming: Cut the sheet after roll forming to required length
- Uses two hydraulic cylinders for operation.
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,5.5KW
- Working pressure: 16Mpa adjustable
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
|
| 5 | Hydraulic System | - Hydraulic power: 5.5kw
- Solenoid valve: 1 group
- Hydraulic oil: 46# hydraulic oil
|
| 6 | Computer Control Cabinet | - Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- Length inaccuracy can be amended easily.
- PLC brand: Panasonic
|
| 7 | Out table | - Jointed by steel tube
- Size: about 2.0m long*0.8mwide*0.6-1mhigh
- One out table with three support roller
- Quantity: 2 units
|
