Corrugated Roll Forming Machine
1. Specification of the material
| 1 | Suitable Material | PI/ PPGI |
| 2 | Width of the raw material | 1250mm |
| 3 | Thickness | 0.3-0.8mm |
2. Machine Detailed Parameters
| 1 | Roll Forming Machine | YX18-76-1064 |
| 2 | Machine structure | Wall board structure |
| 3 | Total power | Motor power-5.5kw Hydraulic power-5.5kw |
| 4 | Roller stations | About 20 stations |
| 5 | Productivity | 0-15m/min |
| 6 | Drive system | By chain |
| 7 | Diameter of shaft | ￠70mm solid shaft |
| 8 | Voltage | 380V 50Hz 3phases (Customized) |
| 9 | Color Of The Machine | Bule and yellow |
| 10 | Deliver time | 70 days |
| 11 | Terms Of Payment | 30%T/T 70% pay before shipment |

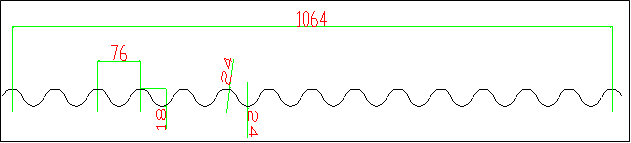

3. Profile drawing
4. The Chart of Process Flow
Manual Decoiler—Roll Forming—Cutting—Out table
5. Specification of Components
(1) Un-coiler
Option1: 5T Manual de-coiler
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 500-590mm
- Maximal out diameter: 1500mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
Option1: 5T Hydraulic de-coiler
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 470-520mm
- Maximal out diameter: 1500mm
- Coil placement in the coil holder: hydraulic hoist
- Working speed: 0--20m/min adjustable
- Main motor power: 5.5KW AC motor
- Hydraulic power: 4kw
(2) Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
(3) Machine Structure
- Main frame by 350H beam welding
- Machine structure: wall board
(4) Hydraulic cutting system
- Cutting after forming: Cut the sheet after roll forming to required length
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,5.5KW
- Working pressure: 12Mpa adjustable
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
(5) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- PLC: Panasonic or customerization
6. Product Application
This type of roof sheet has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
