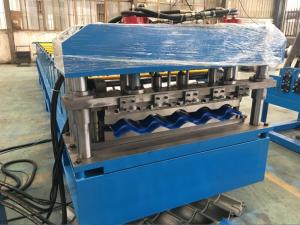

5 - 8 m / min Fast Speed Color Steel Roof Tile Forming Machine One Complete Chain Drive

Name: 5 8 m min Fast Speed Color Steel Roof Tile Forming Machine One Complete Chain Drive
Brand: Saibo
Price: 1 USD

Quality 5 - 8 m / min Fast Speed Color Steel Roof Tile Forming Machine One Complete Chain Drive wholesale

Brand Name : Saibo

Model Number : YX29-191-765

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 300 sets per year

Delivery Time : 70 working days after received deposit

Packaging Details : Suitable for ocean shipment

Power : 4KW servo motor +5.5kw hydraulic motor

Product Name : Tile Roll Forming Machine

Decoiler : Manual or Hydraulic

Station : 18 stations

Steel thickness : 0.4-0.6mm

Roller material : ASTM1045 chrome plated surface with chrome

Drive : By one complete chain

Productivity : 5-8m/min

Contact Now

5-8m/min Fast Speed Color Steel Tile Forming Machine One Complete Chain Drive

Chain Drive Tile Roll Forming Machine with Manual decoiler YX25-183-1100

1. Specification of the material

1	Suitable Material	Colored Steel plate, Galvanized steel
2	Width of the raw material	1000mm
3	Thickness	0.4-0.6mm

2. Machine Detailed Parameters

1	Roll Forming Machine	YX29-191-765
2	Machine structure	Wall panel structure
3	Total power	Motor power-4kw servo motor Hydraulic power-5.5kw
4	Roller stations	About 18 stations
5	Productivity	5-8m/min
6	Drive system	By one complete chain
7	Diameter of shaft	￠70mm solid shaft
8	Voltage	380v 50Hz 3phase
9	Color Of The Machine	Yellow and blue
10	Container need	40GP container
11	Deliver Time	70 days
12	Terms Of Payment	30%T/T 70% pay before shipment

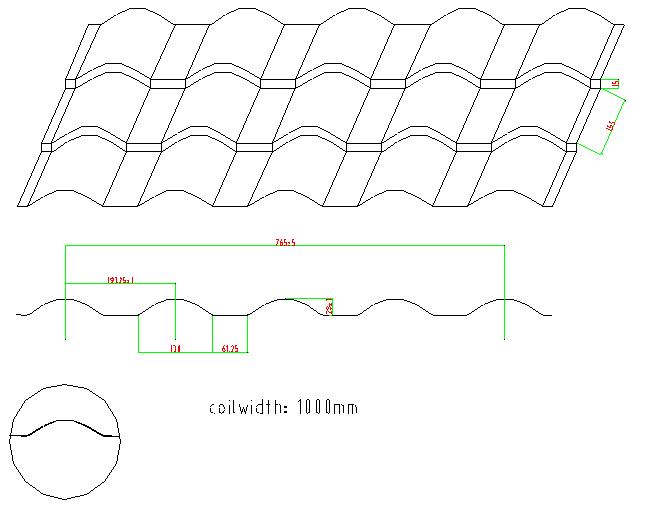

3. Profile drawing

5 - 8 m / min Fast Speed Color Steel Roof Tile Forming Machine One Complete Chain Drive

4. The Chart of Process Flow

5. Specification of Components

(1) 5T Manual Un-coiler

Width of feeding: 1000mm
Capability: 5 Ton
Inter diameter: 500-590mm
Maximal out diameter: 1200mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

(2) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering

(3) Machine Structure

Main frame by 350H beam welding
Machine structure: wall panel

(4)Pressing System:

Pressing after forming: Press the sheet after roll forming to required length
Hydraulic drive uses the same hydraulic unit with cutting
Material of mold:Cr12, 58-62 HRC hardness
Pressing by hydraulic, 5.5KW

(5) Hydraulic cutting system

Cutting after forming: Cut the sheet after roll forming to required length
Uses two hydraulic cylinders for operation.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,5.5KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product

(6) Computer Control Cabinet

Programmable setting of profile length and quantity
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

PLC: Panasonic or customerization
